Able 2 Low-Profile LED ESL X-TRA

The Low-Profile LED ESL X-TRA combines powerful scene lighting and warning light functionality in a compact, space-saving design. Dual-color CREE® LEDs let you switch between bright white scene light and high-impact warning colors, while spot and flood optics deliver both focused and wide illumination. Built with a rugged aluminum housing and weather-resistant electronics, it’s ideal for reliable performance in demanding environments.

Features:

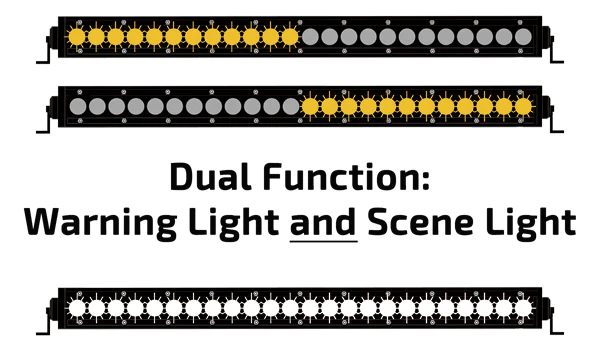

• The Low-Profile LED ESL X-TRA functions as both a warning light and a scene light.
• With a height of only two and a quarter inches, the Low-Profile LED ESL X-TRA fits in small spaces.

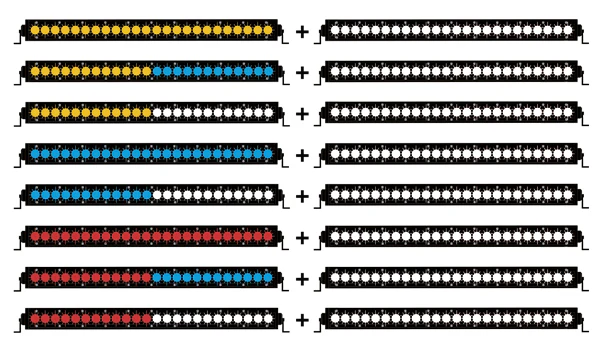

• Dual-color CREE® LEDs allow users to switch between a white scene light that fully extends across the housing face, and a warning light with split arrays of different colors.
• The dual-color LEDs emit white and one alternate color: either amber, blue, red or white.
• An external, three-output flasher enables uniquely eye-catching patterns for bot the scene light and warning light functions.
• The scene light can be steady-burning, double flash fast, or flash in a 1-2 ratio with the warning light.
• The warning light can quad flash fast or flash in a 2-1 ratio with the scene light.
• Spot reflectors on the LEDs in the center of the light provide intense, concentrated light.
• Flood reflectors on the LEDs in both end sections of the light cast a widespread glow.
• Weather- and vibration-resistant electronics allow use in exterior or interior applications.
• The heavy-duty, black, cast-aluminum-alloy housings have clear lens covers that protect LEDS from dust and debris.

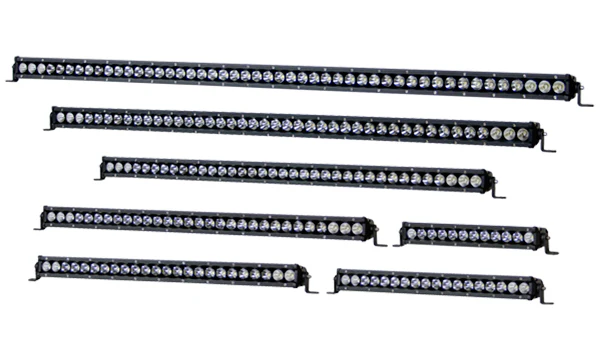

• Lights measure 2-1/4" tall and 2-7/8" deep with lengths ranging from 14" to 49-1/2" (including brackets).
• Ratcheted brackets permit vertical adjustment of the light face.
• All models include a Model 10.3003 flasher, mounting kit and power cable.
• Additional color combinations available upon request.
• Also available in a standard-profile model with a double row of CREE® LEDs.
• 1 year warranty.

Model Specifications:

Model	Amps*	Watts	LEDs	Lumens	Length
10.6060F	2.2	60W	12	6600	14"
10.6090F	2.8	90W	18	9900	19-7/8"
10.6100F	2.9	100W	20	11000	23 1/8"
10.6150F	5.1	150W	30	16500	33 3/8"
10.6180F	5.4	180W	36	19800	37-1/2"
10.6200F	6	200W	40	22000	43 1/4"
10.6210F	6	210W	42	23100	43-1/2"
10.6240F	6.9	240W	48	26400	49-1/2"
10.6250F	7.1	250W	50	27500	53 3/8"
