Able 2 Luminator LED Dash Light

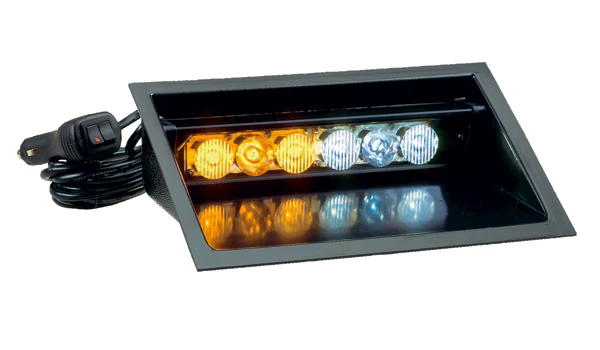

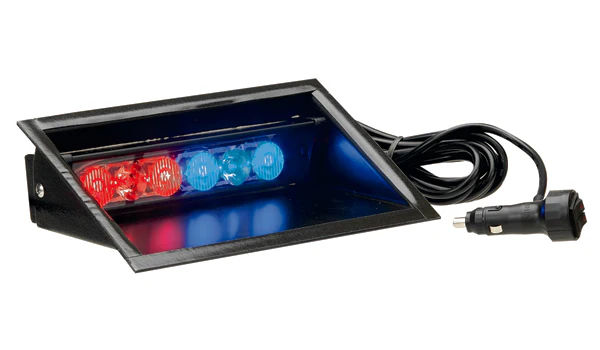

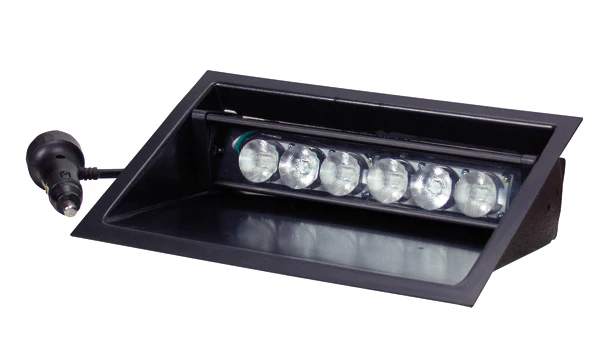

Bright and versatile, this light features six 3W Luminator LEDs with Total Internal Reflection optics for maximum visibility. Diffusing lenses spread light widely while two LEDs provide focused forward beams. Available with or without an internal flasher, in solid or split colors (amber, blue, green, red, white). Durable black anodized aluminum housing with clear lens and removable flashback shield.

Features:

• Six 3W Luminator LEDs incorporate Total Internal Reflection optics to provide exceptionally bright light.
• Diffusing lenses on four of the six Luminator LEDs disperse light horizontally. The remaining two provide concentrated forward light.
• Available with or without an internal flasher.
• Model 12.2809 has a 10 pattern internal flasher and a lighter adapter plug with POWER & MODE switches.
• Model 12.2810 is direct wire and must be connected to a remote flasher. (Sold separately.)

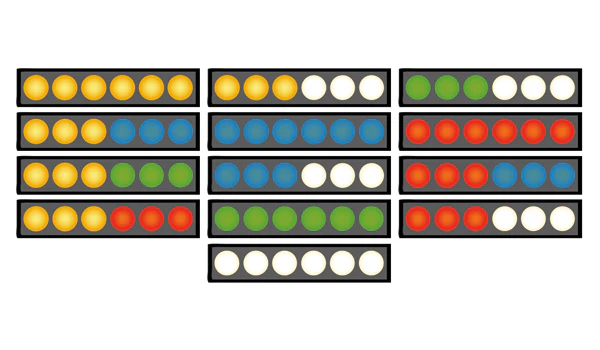

• Available in solid or split arrays of amber, blue, green, red and white.
• Black anodized aluminum housing. Clear lens cover.
• Includes removable flashback shield.
• Rear power cable location.
• Made in the U.S.A.

Specifications:

• Voltage: 12 volt
• Amperage: 1.5 amps max per light
• Dimensions: 2-7/8" H x 9-3/4" W x 6-3/8" D (including shield)
• Wiring:
  • 12.2809 - 15 foot cable / adapter plug
  • 12.2810 - 3 foot power wire

Flash Patterns for 12.2809:

1. Double Alternating
2. Quad Alternating
3. Double-ON Alternating
4. Quad-ON Alternating
5. Wig Wag 1
6. Wig Wag 2
7. Wig Wag 3
8. Phased
9. Ultra Flash
10. Random
