Strobes N' More S Series LED

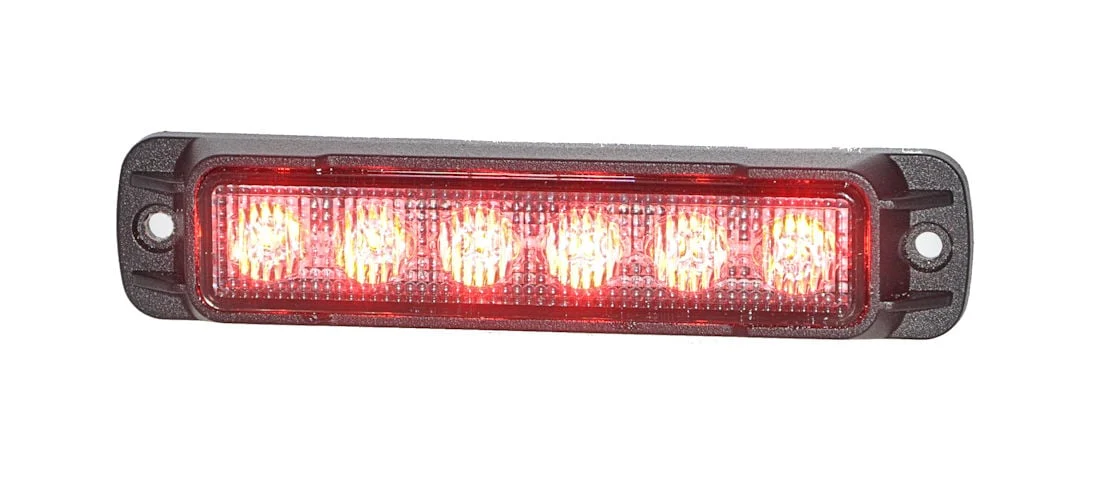

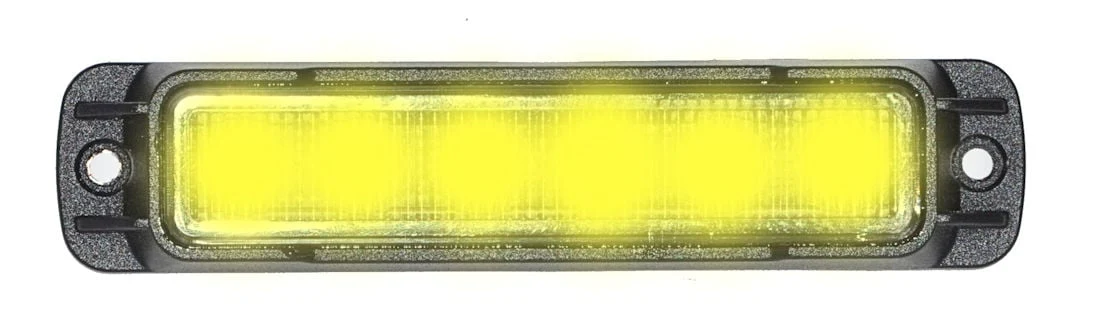

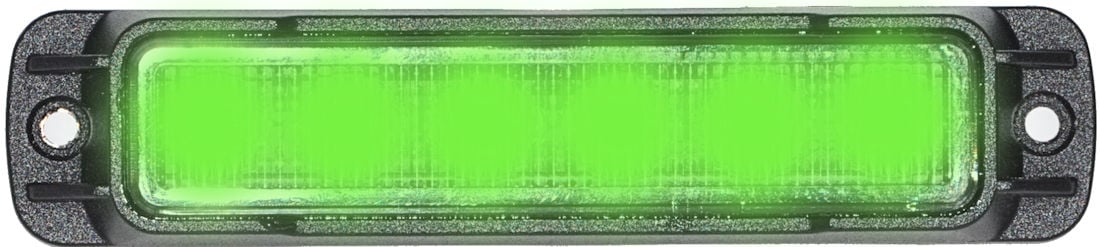

The SH6 Lighthead is a compact, high-output warning light designed for maximum visibility and durability. Featuring six 4-watt LEDs, it delivers powerful performance in a slim, low-profile housing only 13 mm tall.

Key Features:

• 10–30V DC operation
• Six 4W LEDs for strong, reliable light output
• Low profile design with only 13 mm height
• Aluminum die-cast housing for excellent heat dissipation
• Fully encapsulated for moisture, vibration, and corrosion resistance
• Meets ECE R65 Class 2, R10, and SAE standards
• Dimensions: 117 x 28.5 x 13 mm
• Warranty: 2 Years

Flash Patterns:
Choose from 20 user-selectable flash patterns, including single, double, triple, quadruple, quintuple, strobe, alternating, and combination modes. Synchronization is available for multiple heads, with the ability to alternate flash or run in sync.

Wiring:

• Black: Negative (-)
• Red: Positive (+)
• Yellow: Pattern switch / sync wire
• White: Alternating flash

Applications:
Ideal for emergency, utility, and work vehicles. Can be mounted in tight spaces thanks to its low-profile design while still delivering high visibility.
