Whelen Pioneer Micro Super LED Work/Scene Light

*This is a Special Order item.

Space limited? Need heavy-duty, over-the-top performance? Here's legendary Pioneer performance in a Micro Pioneer built to fit almost anywhere on your vehicle! Ideal for challenging applications on Fire, EMS and Rescue vehicles, marine, utility and off-road… even agricultural uses. Want to make your lights flash too? Check out the 2 available flashers above. They will allow you to change your lights from steady burning floods to flashing lights with a flip of a switch.

Whelen also offers a 2015-2019 Ford F-150 Pillar/Hood Mount for the bail/stud mount for Micro or Nano Pioneers. Please call us at (401) 454-4487 to order this part (NPBKT2).

Features:

• Rugged, die-cast aluminum housing, powder coated Black or White
• Solid-state electronics are rugged and reliable, built for the long haul
• Rated to last thousands hours with remarkable bright light
• 8° spot spread pattern comes standard and includes three optional optics (90° H x 20° V wide flood; 40° H x 20° V flood; 40° H x 8° V horizontal flood)
• Optic lens changes easily via four screws in picture frame fixture
• Micro Pioneer Series is rated IP67 for dust and water resistance
• Powder coated stainless steel bail bracket with 3/8" stud bolt mount

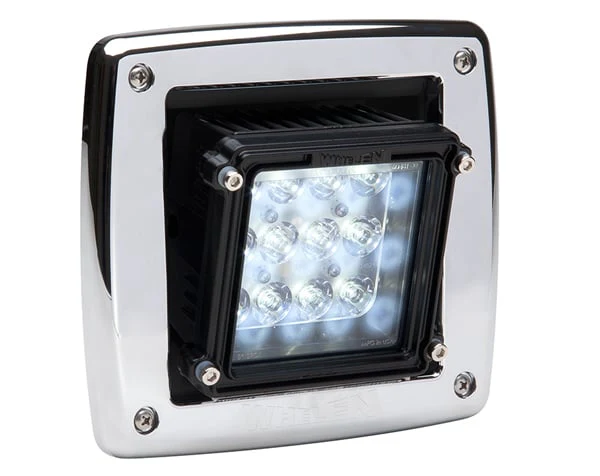

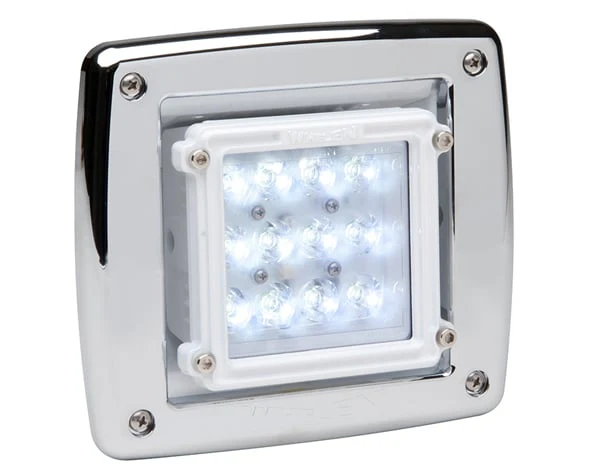

• Recessed models straight or fixed 15° downward angle

Specifications:

• 4100 lumens
• 12.8VDC standard, draws 4 amps
• 24VDC models available, draws 2 amps

Dimensions:

• Bail/Stud: 4-5/8" (118mm) H (w/bracket) x 2-7/8" (73mm) D x 4-3/4" (121mm) W
• Pedestal/Swivel: 8-11/16" (220mm) H x 3-1/4" (82mm) D x 5-1/16" (129mm) W (includes handle)
• Recessed 90° Angle: 6-15/16" (176mm) H x 2-9/16 (65mm) D x 7-11/16" (195mm) W
• Recessed 15° Angle 6-15/16" (176mm) H x 2-9/16 (65mm) D x 7-11/16" (195mm) W
• Pole/Pedestal: 10-1/8" (260mm) H x 5-1/2" (136mm) D x 5-1/16" (129mm) W (includes handle)
