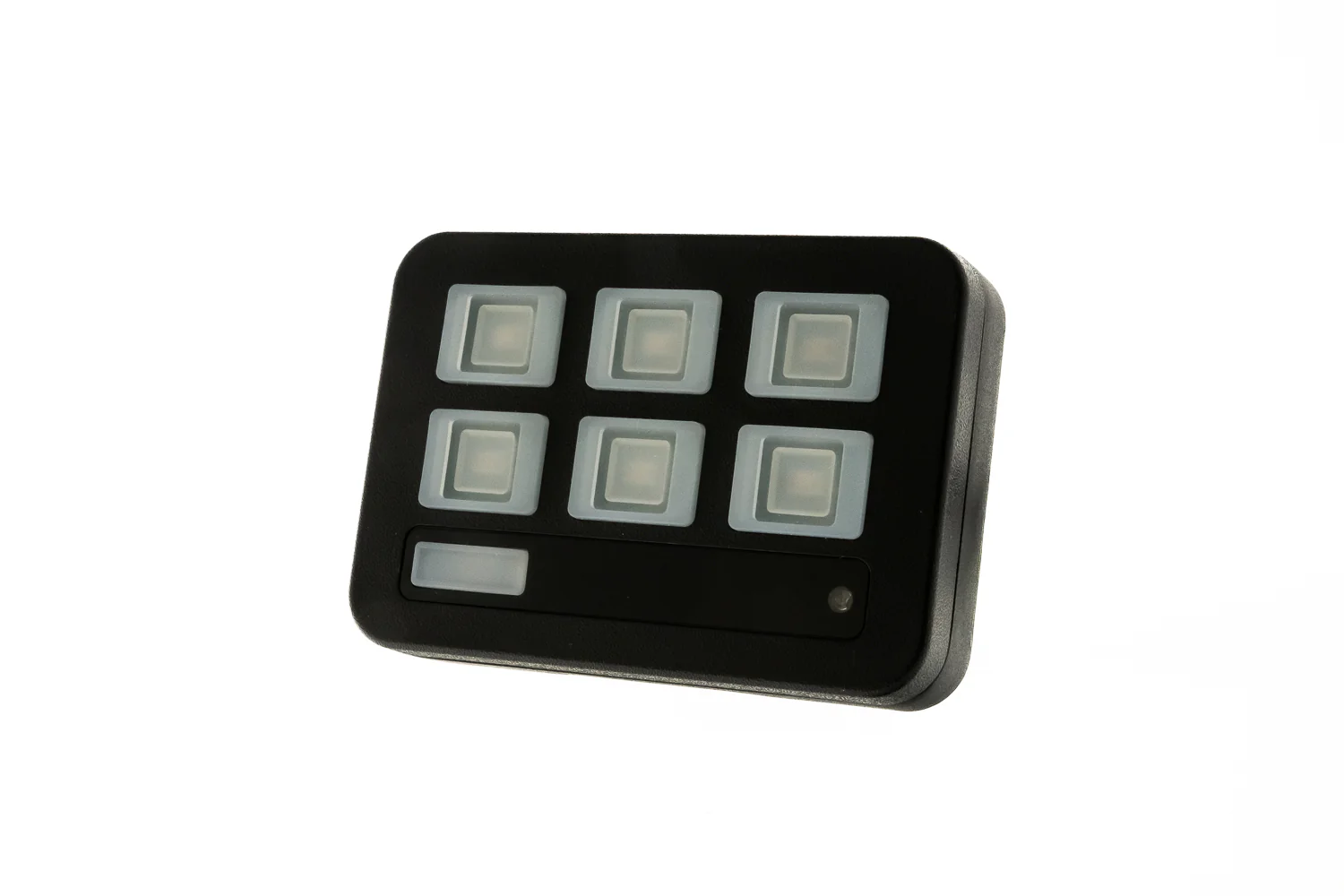

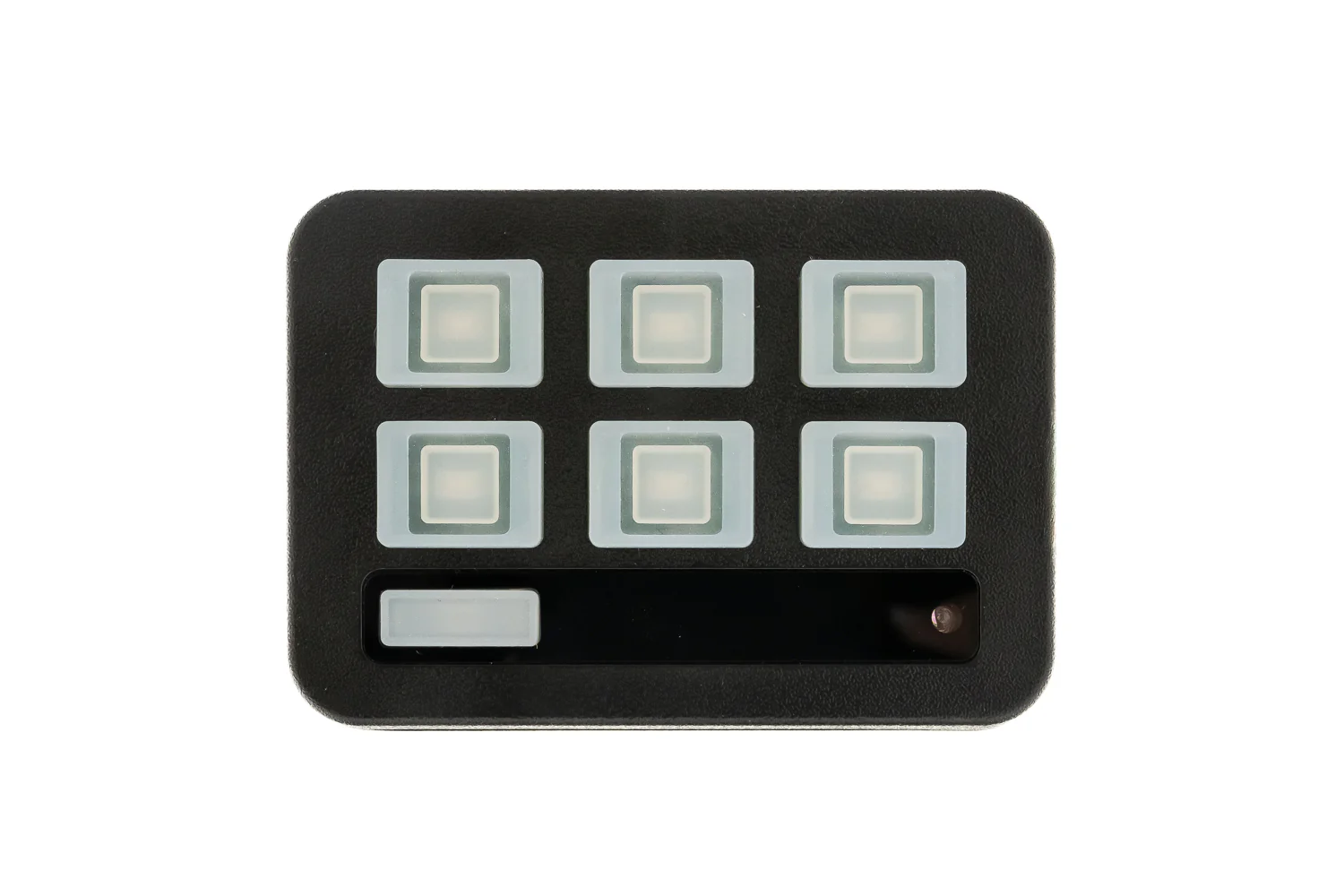

Strobes N' More - TOUCH6 Self-Contained Controller

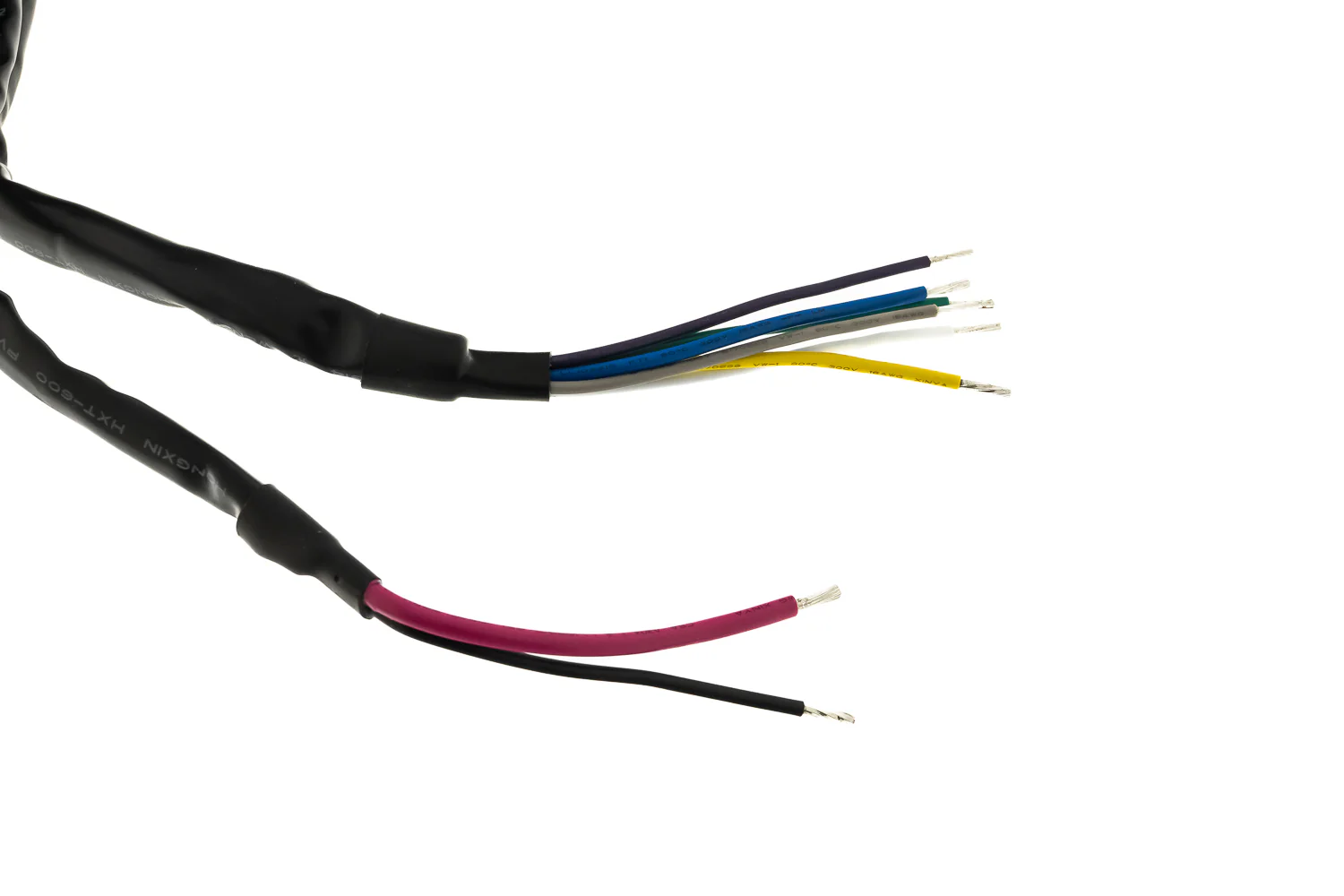

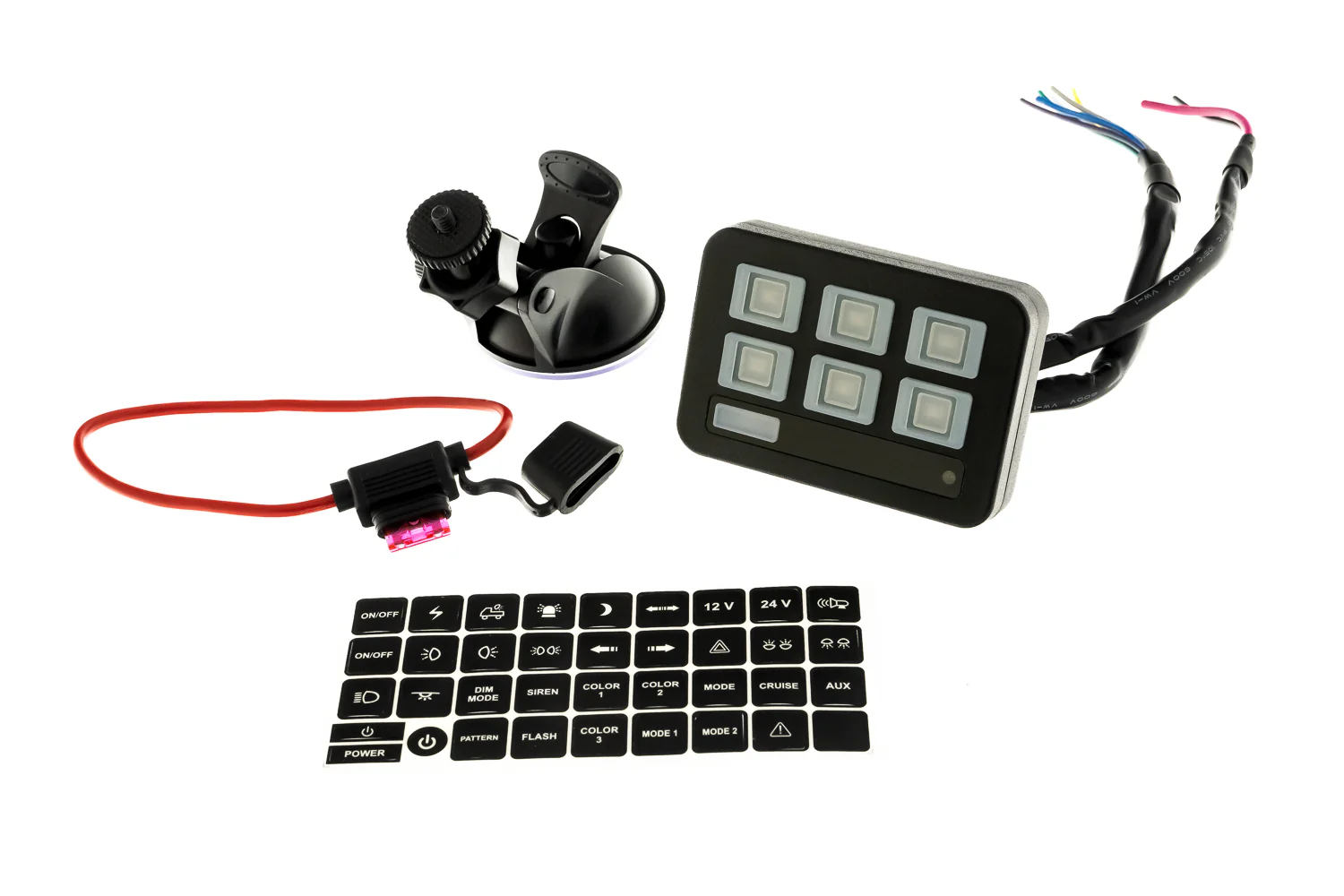

The Strobes N More Touch-6 Self-Contained controller is an updated version of our heavy-duty, 6-function programmable switch panel. Unlike smaller panels that require added relays, the Touch-6 includes a self-contained relay box capable of handling up to 40 amps. Each soft-touch switch features on/off indicators and customizable labels, with a dual color self-adjusting backlight for improved visibility. Designed for professional-grade use, the Touch-6 is easy to install and includes wiring pigtails off the unit and optional mounting hardware.

Features:

• 6 programmable soft-touch switches
• Handles up to 40 amps total (no external relays needed)
• Backlight and on/off indicators

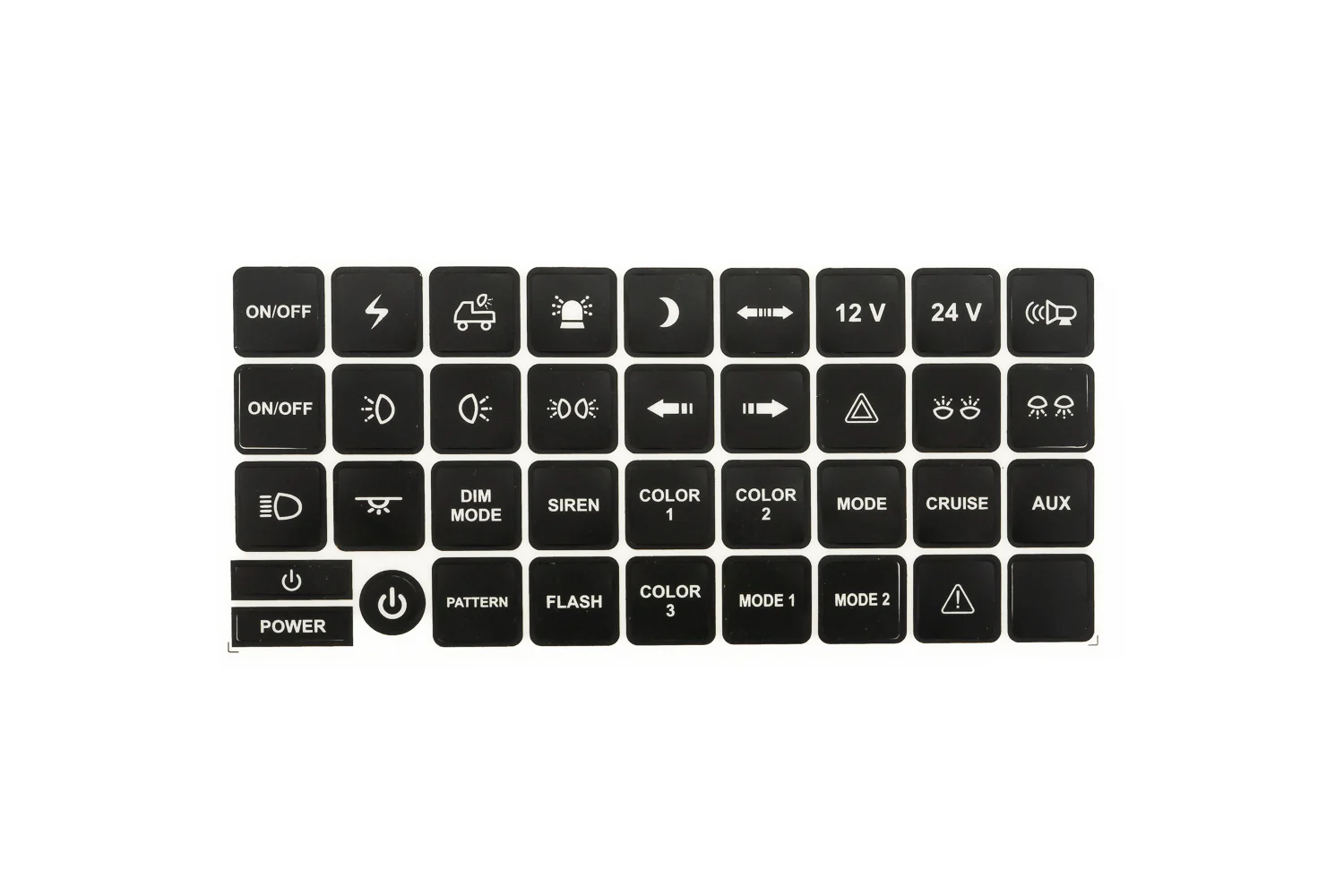

• Customizable, replaceable labels
• Built-in reverse polarity and over-voltage protection

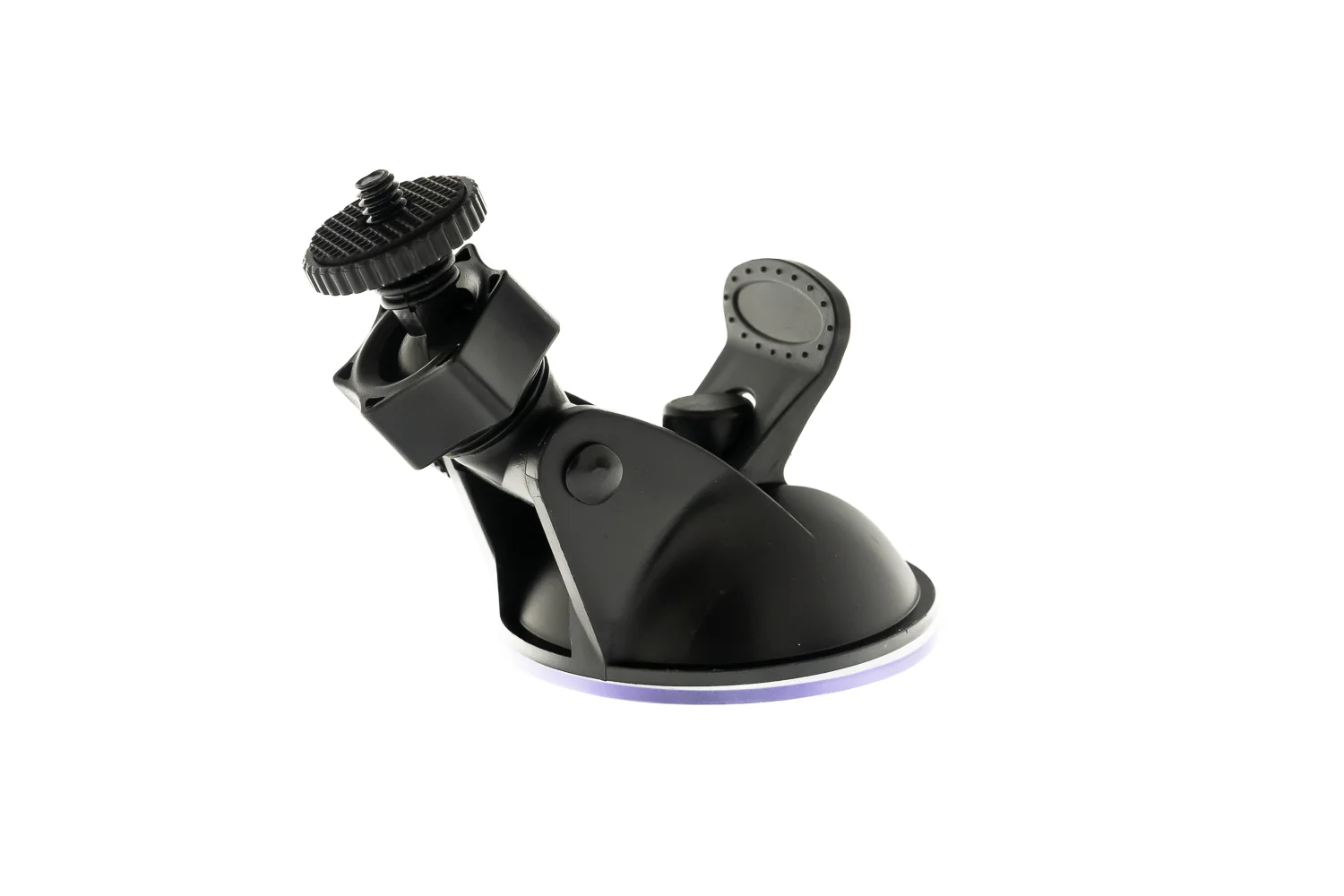

• Includes flush and pedestal mounts
• 2-year warranty

Specifications:

• Input Voltage: 12-30vDC
• Max Input: 40 Amps
• Max Output: 40 Amps
• Switch Panel Dimensions: 3.88" W x 2.75" H x 0.75" D

• Panel Material: High-quality aluminum

• Power Harness Length: 11 inches

Output Breakdown:

• 2 x 10A Output – Suitable for lightsticks, interior bars, flood bars, etc.
• 4 x 5A Outputs – Suitable for dash lights, perimeter lighting, siren inputs
