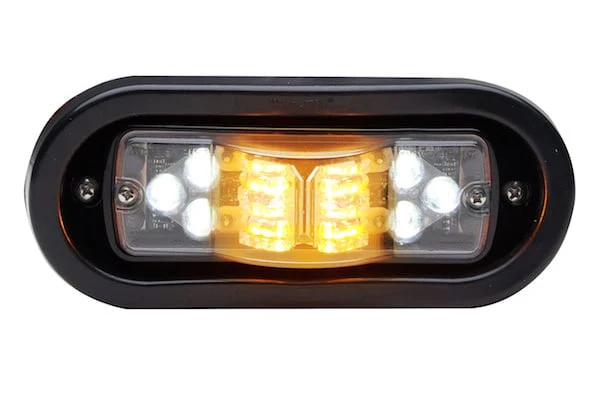

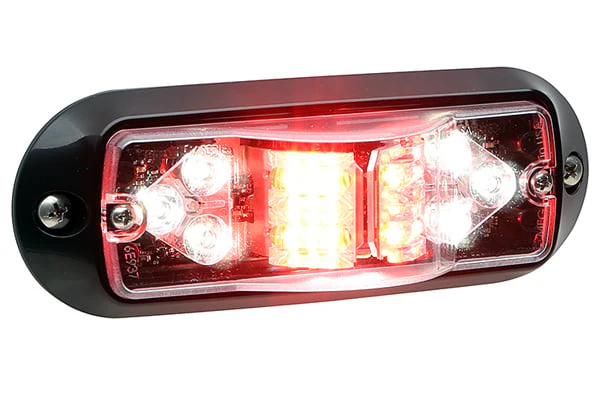

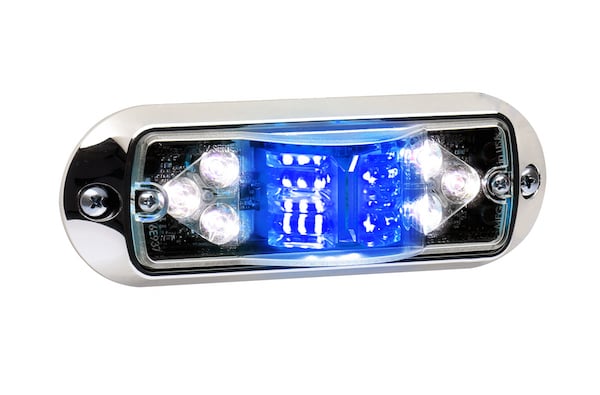

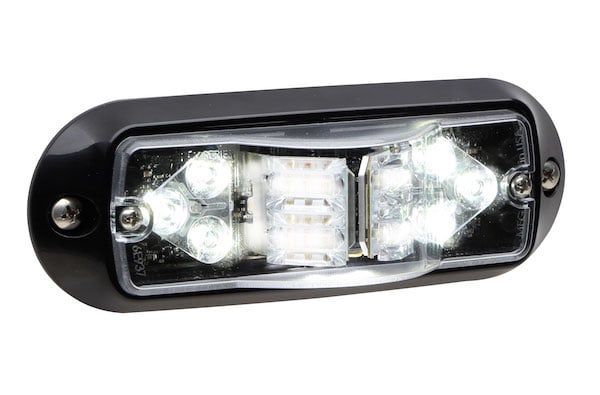

Whelen 500 V Series Linear Super LED

*This is a Special Order item.

V-Series™, Combination 180° Warning, Take Down and Puddle Light Combination with Scan-Lock™ Warning Flash Patterns, Red, Blue, Amber or White Warning. Small size fits anywhere on the vehicle with a wide variety of mounting options. Also available in surface mount model that requires no mounting option. V-Series lighthead with combination warning, flood/alley and ground illumination (puddle light), all individually operated. Surface mount.

Features:

• Three-in-one combination light for warning, flood/alley and ground illumination in one remarkably compact surface mount lighthead
• 180° wide-angle warning light for Class I SAE 845 requirements
• Comes standard with clear outer lens and your choice of LED color (colored lenses may be available separately, please contact us for ordering info)
• Hard-coated lenses with HDO™ technology for unmatched high intensity warning
• Scan-Lock™ flash patterns plus steady-burn and synchronize feature for the warning segment of this lighthead
• Warning available in Red, Amber, Blue and White
• Steady-burn White for alley/flood lighting plus White ground illumination
• Requires optional mounting kit, purchased separately
• Five year HDP® Heavy-Duty Professional warranty
• 2-1/8" (54mm) H x 1-5/8" (42mm) D x 5-3/8" (137mm) L
• Amp Draw @ 12 VDC: Warning/.12A
• Flood/1.0A, Puddle/.5A

Optional Mounts:

• 5FLANGEC - Chrome-Plated Trim Ring, Kit
• 5FLANGEB - Black Trim Ring, Kit
• 5FLANGEP - Polished Aluminum Flange
• 5TSMAB - Black Surface Mount Adapter
• 5TSMAC - Chrome-Plated Surface Mount Adapter
• 5BRUSH - Aluminum Brush Guard, Includes Surface Mount Adapter, 5mm Requires Optional Flange Purchased Separately
• 5GROMMET - Grommet Mount Kit
• 5GBKT1 - Optional "L" Bracket for use with Grommet Mount Lighthead Only, Each
• 5BKT1 - Mounting Bracket for 500 Series Super-LED
