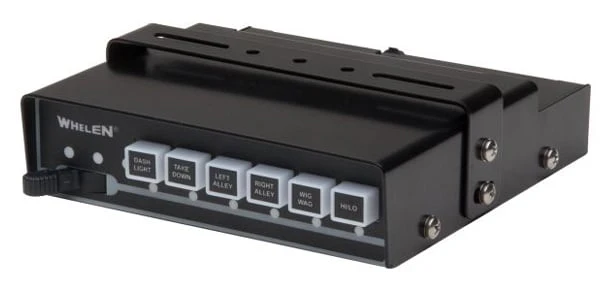

Whelen 9 Function Switchbox with Slide Switch

The Whelen PCCS9RW switchbox features high current with built-in relays for lightbars that use standard switching. Connects to most lightbars and auxiliary warning equipment without the use of separately mounted relays or relay boxes.

Features:

• Control 9 lightbar functions or other auxiliary equipment.

• Front panel programmable slide switch with three 20 amp relays
• Six front panel programmable pushbutton momentary type switches with 20 amp relays
• All switches can be programmed to activate any combination of the relay outputs, or any other momentary push-button switch
• The 6 momentary switches can be easily programed for one of four operations, push-on push-off, momentary, flashing or timed output
• Easy reset to factory default
• Clone one controller to another
• Any switch can be programmed for siren activation
• Auxiliary input slide switch, position 3
• Momentary contact for low power, trunk lock or gun lock control
• Long lasting solid-state green LED backlighting makes it easy to read the translucent legend buttons at night
• Active switches are easily identified in bright sunlight or at night by a red indicator located just below each button
• 72 press-on legend tabs
• Individual 20 amp fused outputs
• Designed to stack-mount with the WS295 Series Siren amplifiers or Traffic Advisor™ Control Head
• Includes a universal bail bracket strap mounting kit for over or under dash mounting
• Weight: 1.75 lbs. (0.8kg)
• Size: 6 1/4"L x 6 1/8"W x 1-7/8"H
