Whelen Mini T Series SOLO Lightheads

Note: These are a new and updated product release to the T and Mini-T family of lightheads. We have limited quantities available of some options - certain color combinations may not be regularly stocked at this time and may be subject to current Whelen lead times. We also still have quantities of the previous T-Series available here "Whelen ION Mini T Series Linear Super LED"

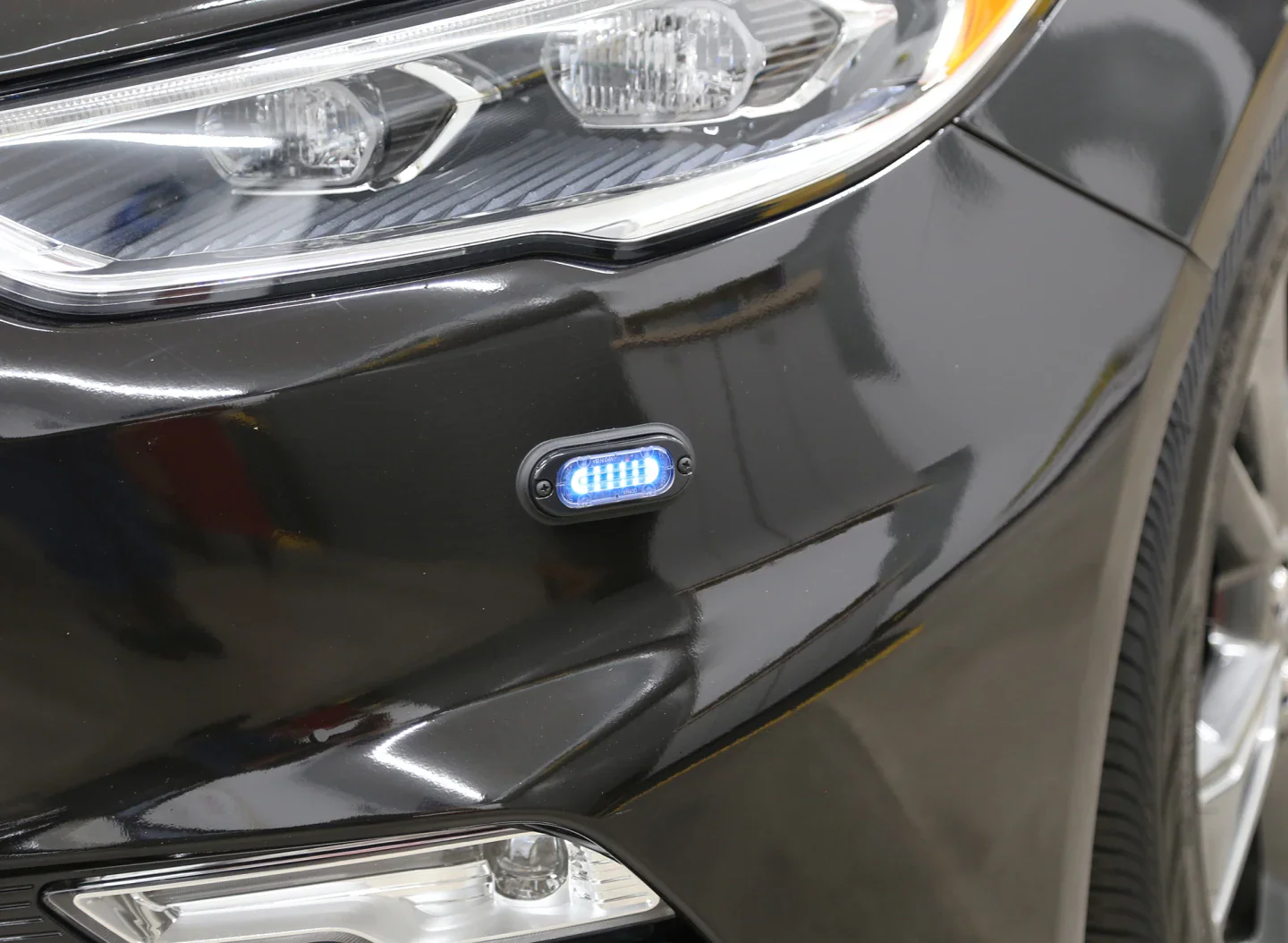

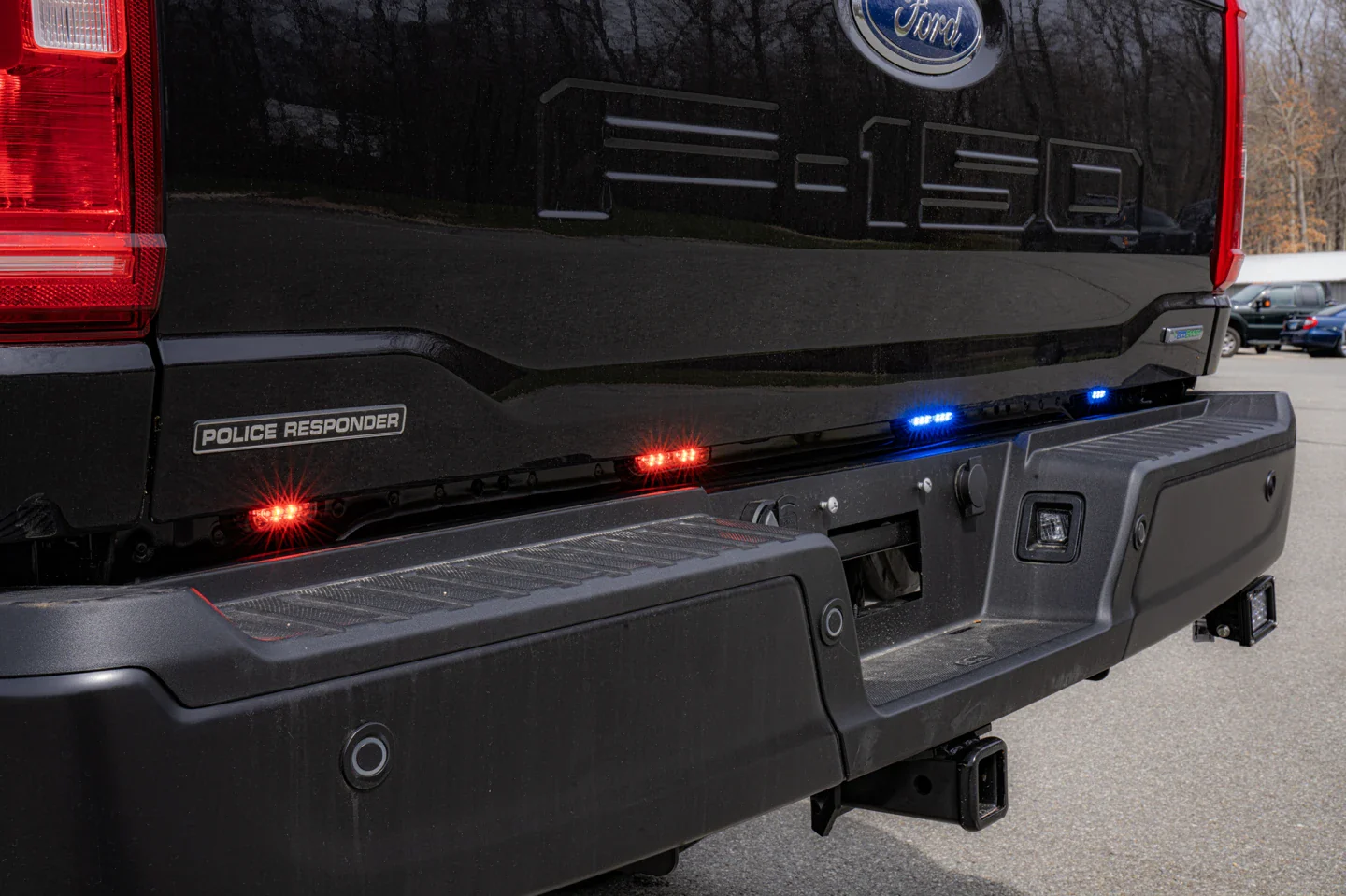

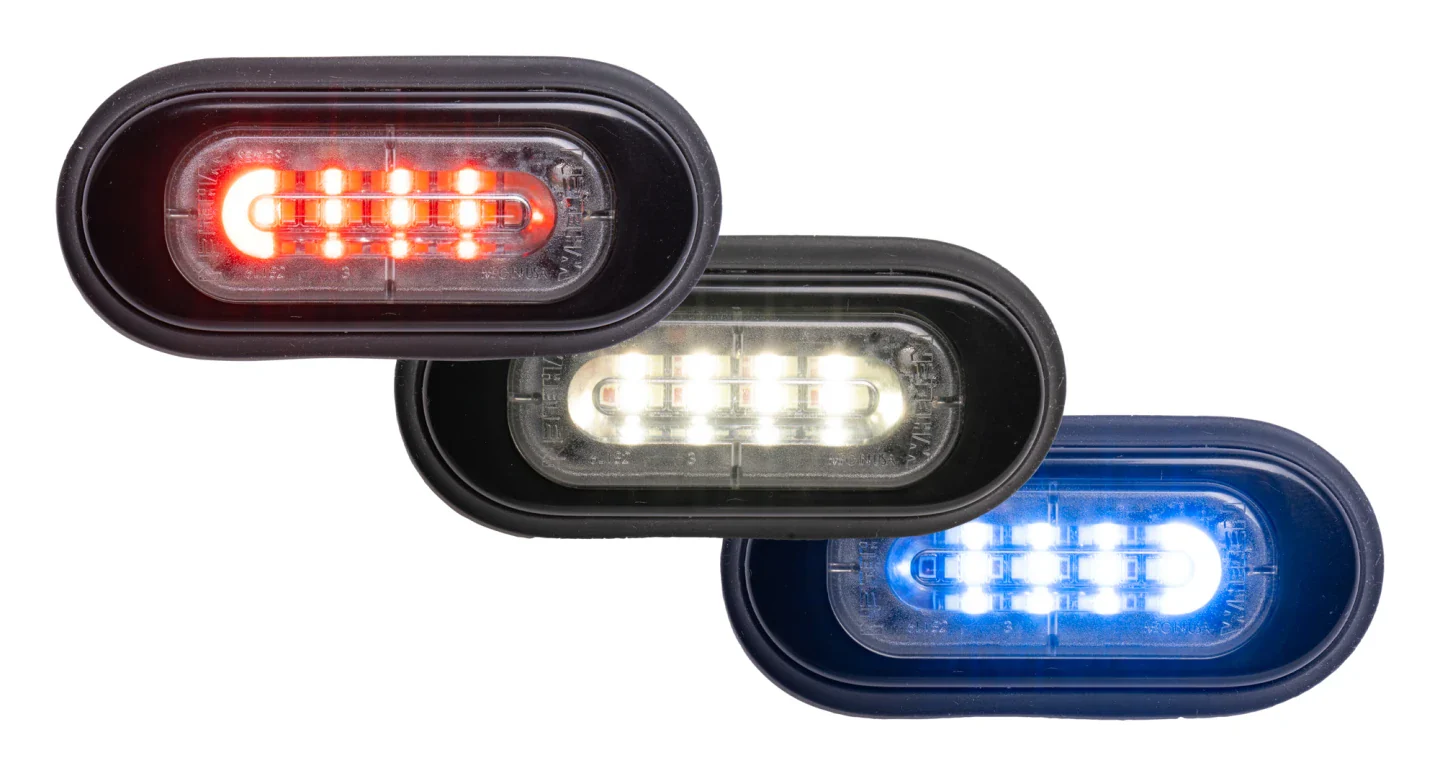

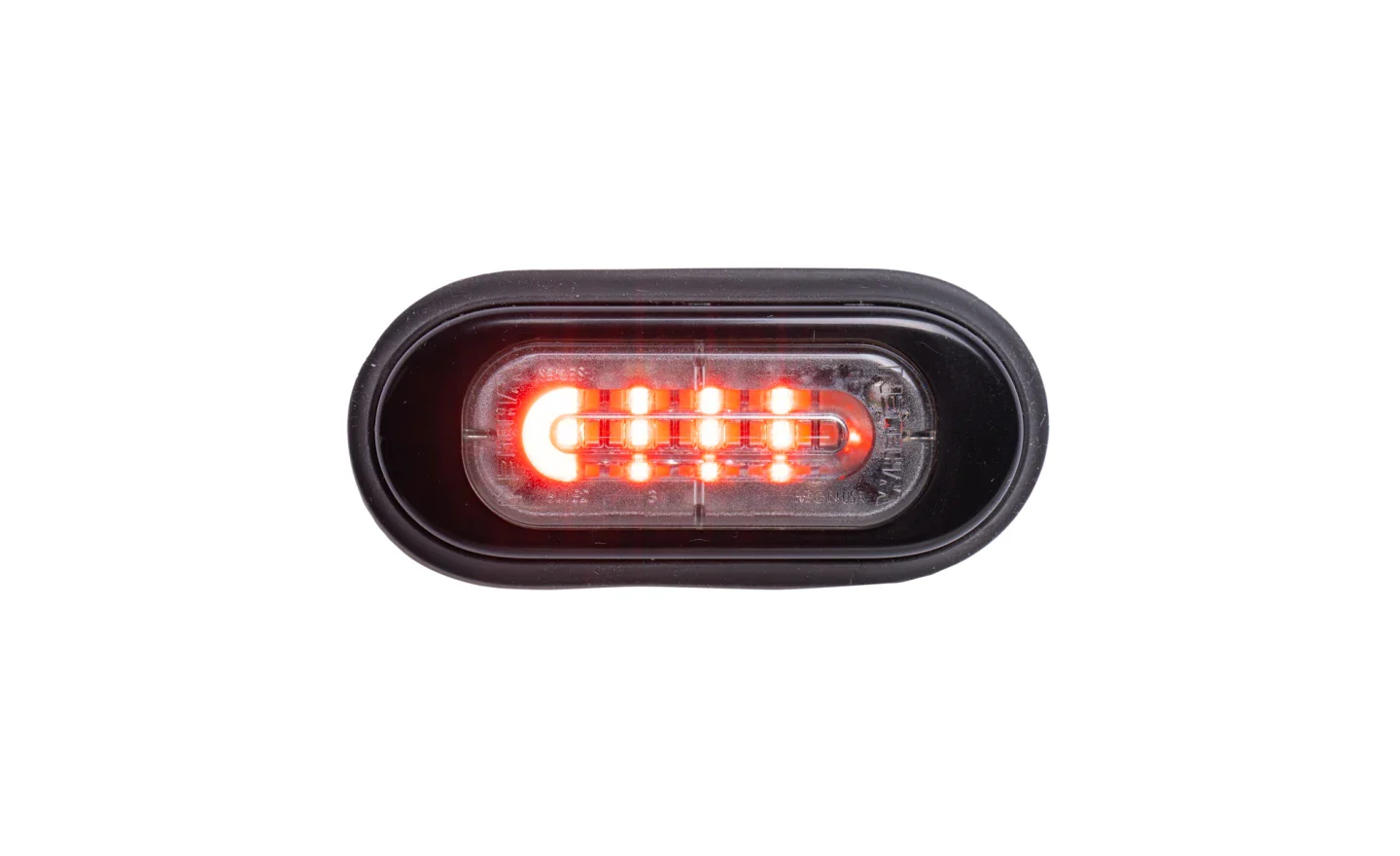

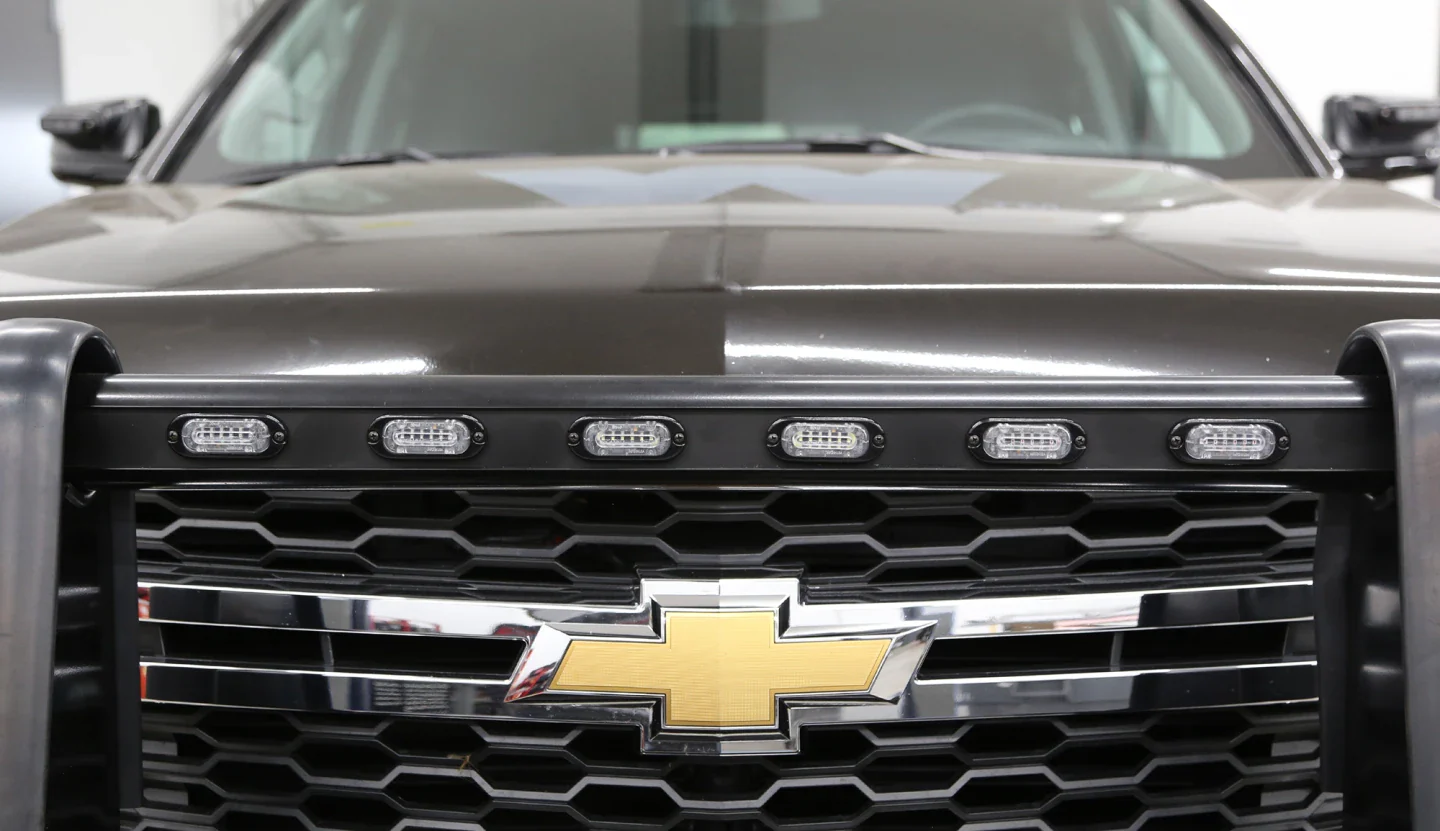

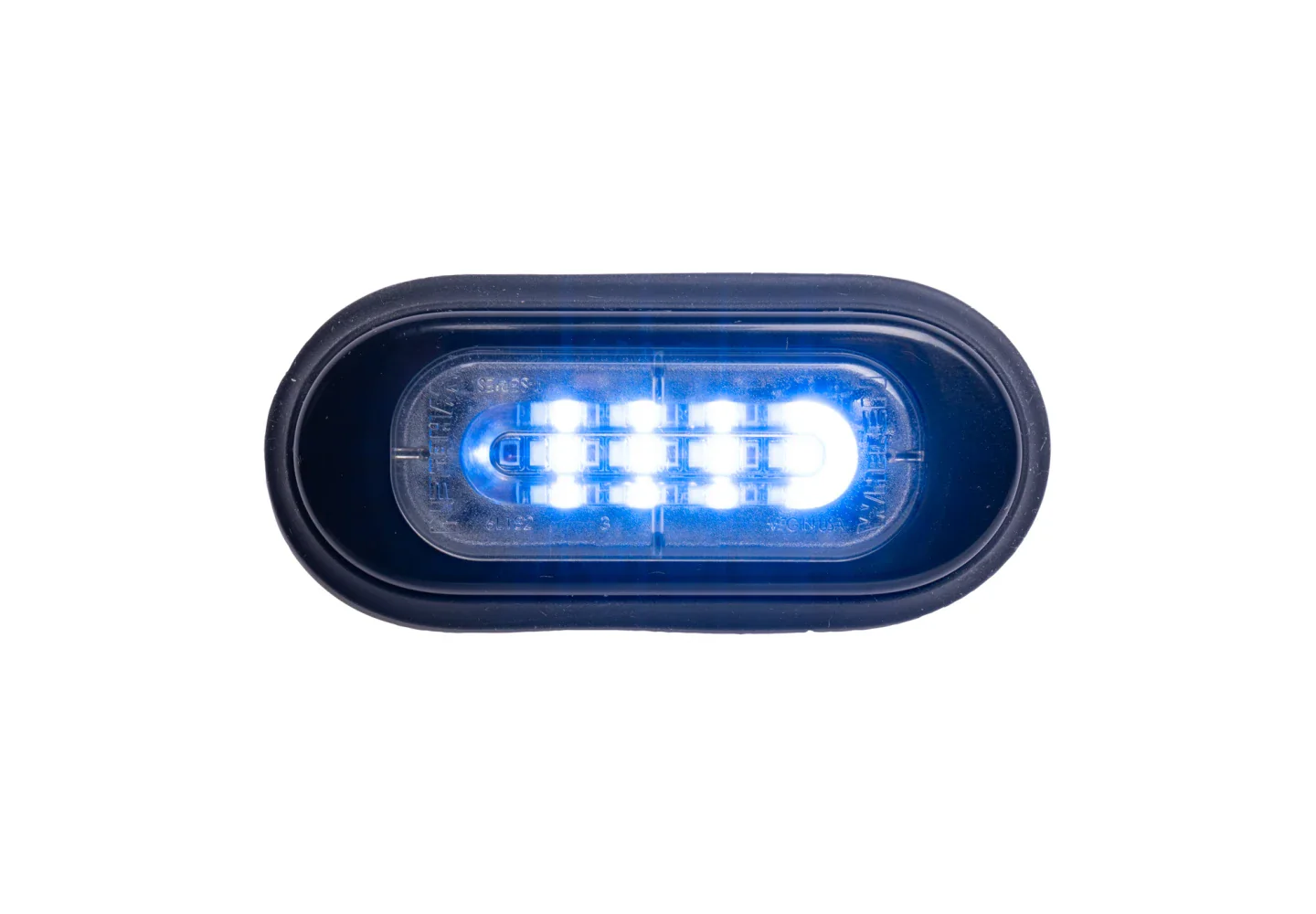

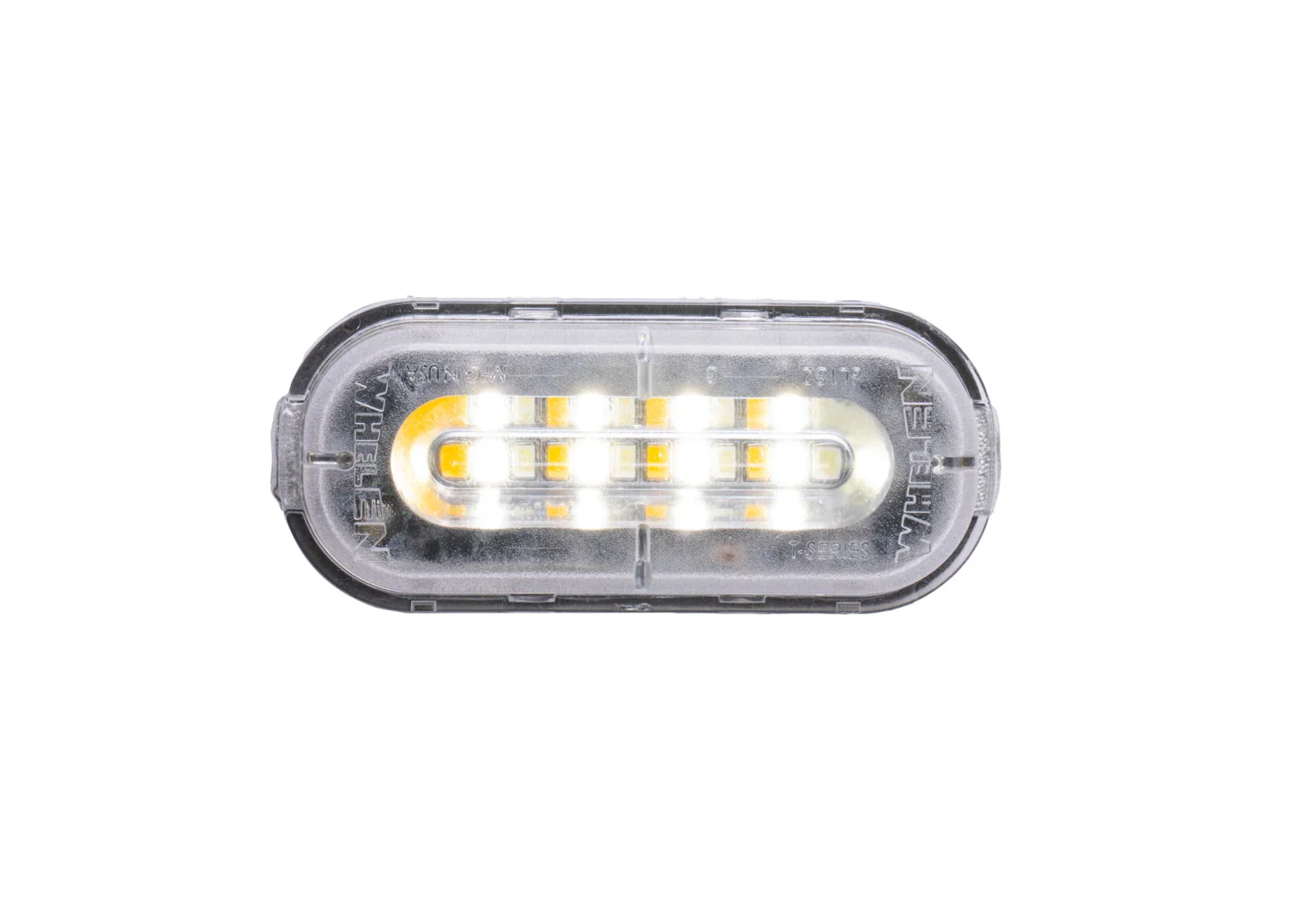

At just over 3.0” long and only 0.5” deep, the Mini T-Series™ is the smallest lighthead in the T-Series family, delivering high-performance warning and illumination in a highly compact design. Featuring Linear Super-LED® technology, the Mini T-Series provides bright, consistent light output, making it a versatile solution for emergency, utility, and work vehicles. The Mini T-Series lighthead is available SOLO™, DUO™, and TRIO™ models, each with multiple Scan-Lock™ flash patterns that will meet the needs of any situation. Built for durability, the Mini T-Series features hard-coated lenses and E Block™ technology to protect the lighthead from the elements, making it a reliable choice for harsh conditions.

Features:

• Trusted T-Series Performance: The versatility and reliability of our popular T-Series lightheads reimagined to deliver maximum performance in a smaller package
• Ultra-Slim Profile: With a depth of only 1/2” for seamless integration
• Cutting-Edge Technology: Equipped with Dynamic Variable Intensity™ (DVI™), E Block™ Protection, and Steady-Lock™ for advanced functionality
• E Block™: Patented watertight seal prevents moisture from entering the lighthead
• Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety
• SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies

Specifications:

• Linear Super-LED®: SOLO™, DUO™ and TRIO™ models available
• Steady-Lock™: Automatically set flash pattern to Steady when paired with a Core® system
• Scan-Lock™: Advanced flash pattern control
• Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
• Flash Patterns: 36 Scan-Lock™ flash patterns including Steady-Burn
• Control: SmartLED®
• Flanges: Black (default), Chrome or White
• Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
• Conformal Coated Electronics: Environmental, moisture, and vibration resistance

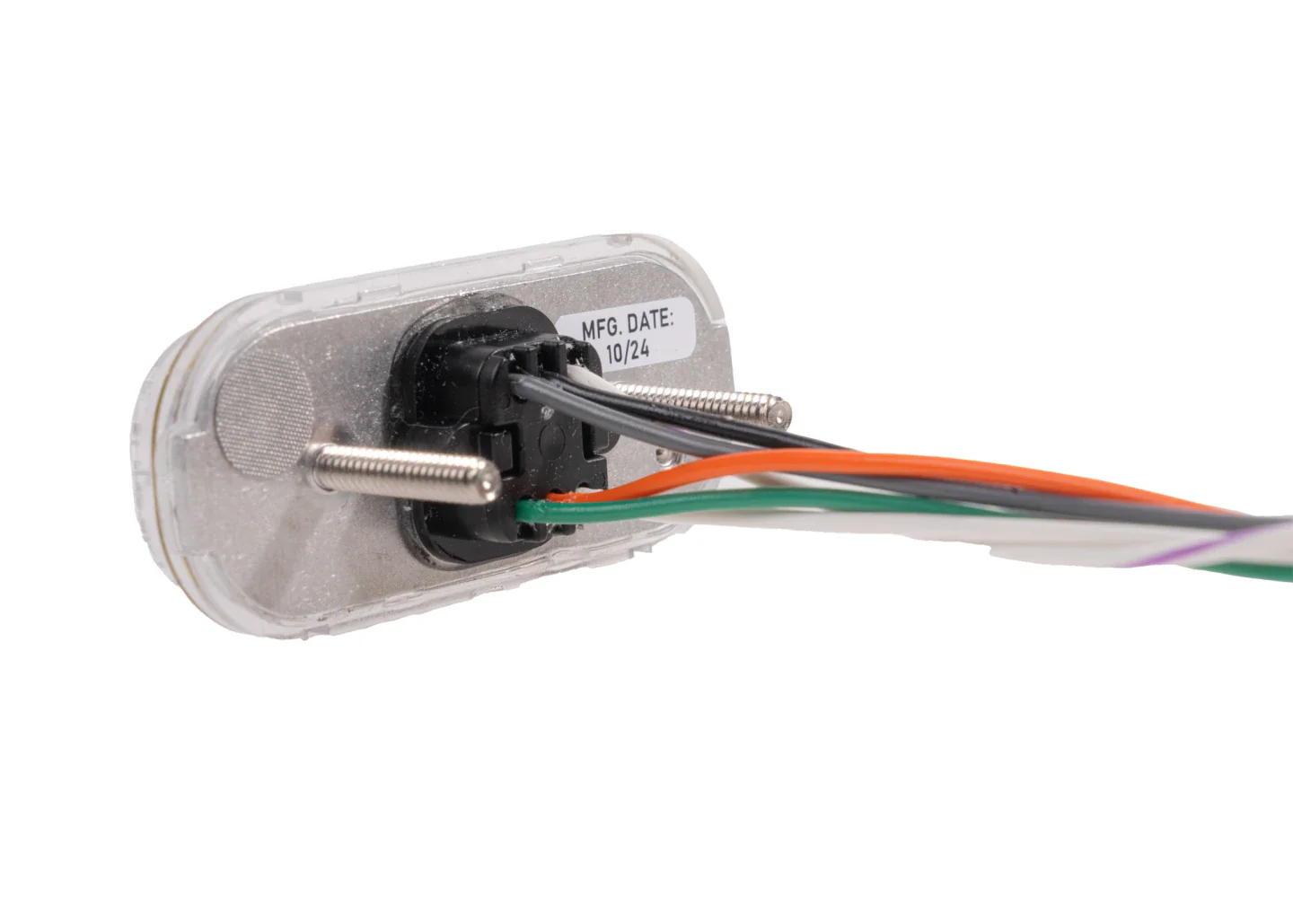

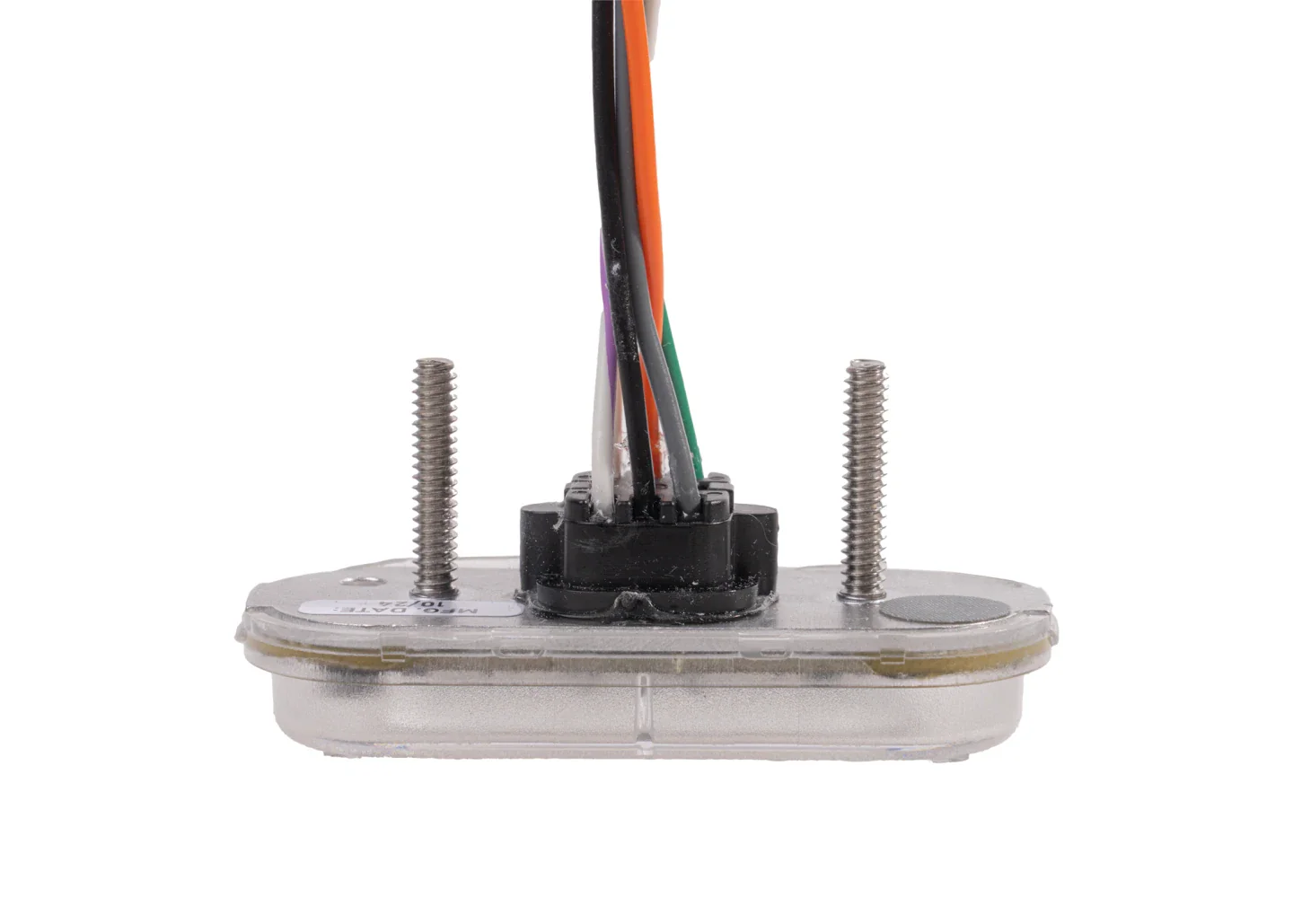

• Mounting: Surface Screw Mount or Stud
• Included Cables & Hardware: 22 AWG 6.5" (16.51 cm) Pigtail
• Warranty: 10 Years
• Voltage: 10-30 VDC
• Amps: SOLO™: 0.80 (peak), 0.50 (avg.)
• Certifications:
  • SAE Standards: SAE J595, SAE J845
  • Environmental: IP67
  • Regulatory Compliance: CA Title 13 ,R10, R65
•  Size:
  • Stud mount: Width: 2.35" (5.97 cm), Height: 1.03" (2.62 cm), Depth: 0.48" (12.19 mm)
  • Stud mount with flange: Width: 3.34" (8.48 cm), Height: 1.49" (3.78 cm), Depth: 0.48" (12.19 mm)
  • Surface mount: Width: 3.34" (8.48 cm), Height: 1.49" (3.78 cm), Depth: 0.54" (13.72 mm)

Install Guides:

• Mini T-Series™ Lighthead (Stud Mount)
• Mini T-Series SOLO / DUO™ Lighthead (Surface Mount)
