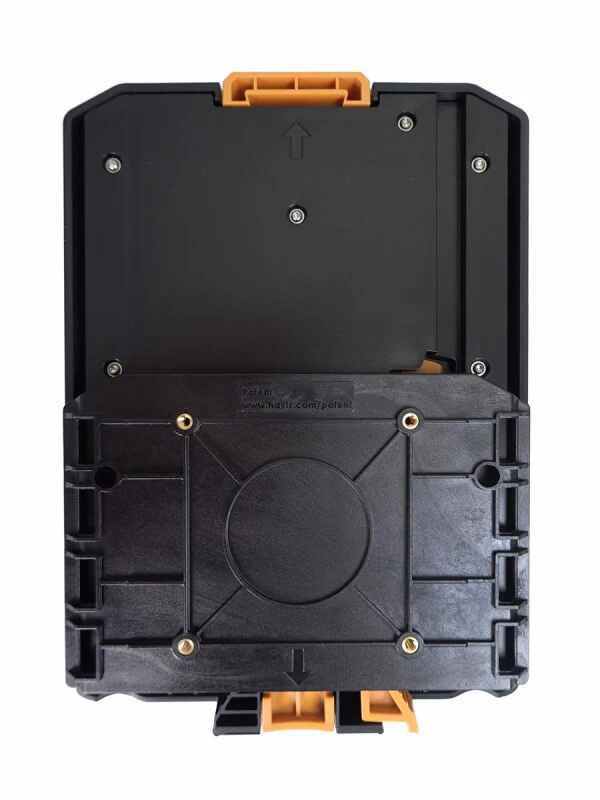

Havis Rugged Keyboard Mount

Features:

• Patented Havis Rugged keyboard mount
• Designed to mount Havis rugged USB backlit keyboards
• Front-access trigger permits easy fore/aft adjustment within a range of 3.875"
• Easily remove the keyboard using our unique quick-release push button
• Made of high performance PC-ABS thermoplastics resulting in outstanding strength, heat resistance, feature definition, and surface finish
• Primary mounting plate is glass fiber polymer reinforced for extra durability
• Mounting: VESA 75 at bottom of keyboard mount
• Use C-ADP-112 if mounting to flex arm mount

Specifications:

• Dimensions: 9.2" ( 23.4 cm) h x 6.4" ( 16.3 cm ) w x 1.4" ( 3.6 cm ) d
• Product weight: 1.0 lbs. (0.45 kg)
• Gross weight: 2 lbs

Testing:

• Vibration Testing: MIL-STD 810G 514.5
• Crash test: SAE J1455 30mph Crash Testing
• Environmental testing: hot/cold operational & storage

Informational Links:

• Isoview Drawing (JPG)
